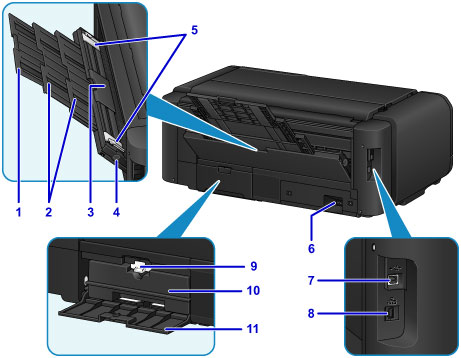

Back / Side

(1) paper support extension

Extend to load paper in the manual feed tray.

(2) paper support

Pull out to load paper in the manual feed tray.

(3) manual feed tray

Load one sheet of 8" x 10" (20 x 25 cm), A4, Letter size paper or larger, or thick paper at a time.

• Loading Paper in the Manual Feed Tray

(4) Paper Jam Clearing button

Press this button when removing paper jammed in the manual feed tray.

(5) paper guides

Align with both sides of the paper stack.

(6) power cord connector

Plug in the supplied power cord.

(7) USB port

Plug in the USB cable to connect the printer with a computer.

(8) wired LAN connector

Plug in the LAN cable to connect the printer to a LAN.

(9) lock lever

Locks the maintenance cartridge into place so that it does not come off. Keep the maintenance cartridge locked for normal use.

(10) maintenance cartridge

Absorbs ink used for cleaning and other operations.

• Replacing the Maintenance Cartridge

Important

• When purchasing a new maintenance cartridge, order the following cartridge number.

  Maintenance Cartridge MC-20

(11) maintenance cover

Open when replacing the maintenance cartridge.

Important

• Do not touch the metal casing.

• Do not plug in or unplug the USB cable or LAN cable while the printer is printing with the computer. This can cause trouble.
